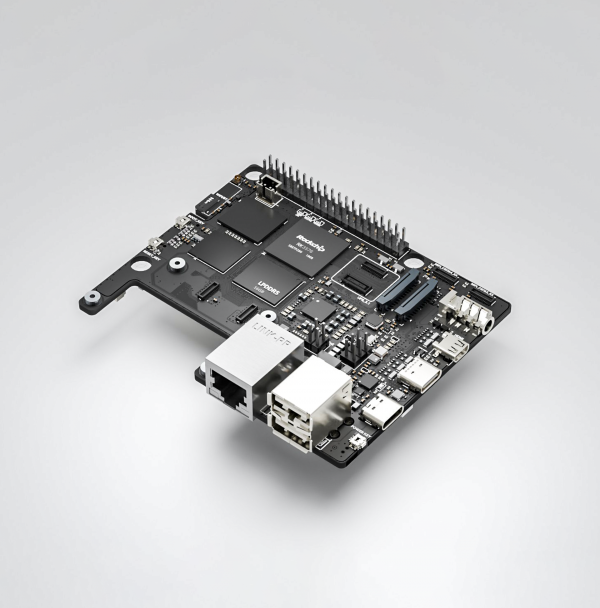

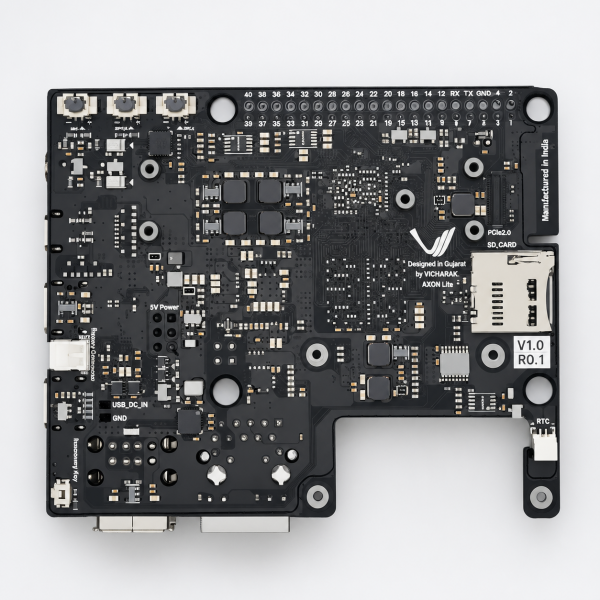

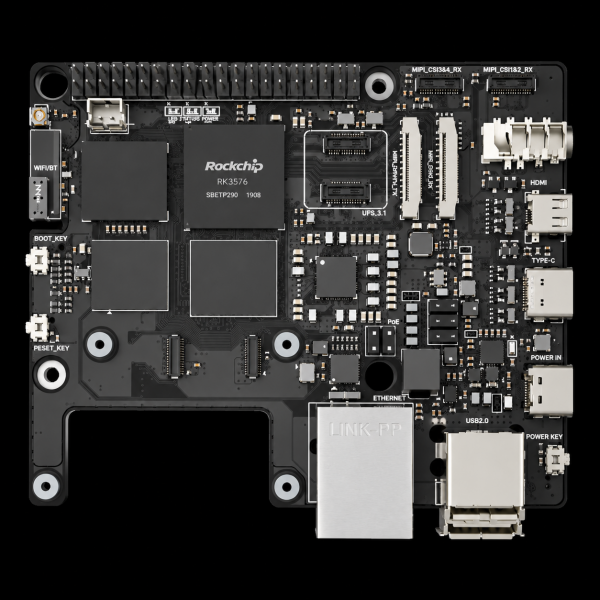

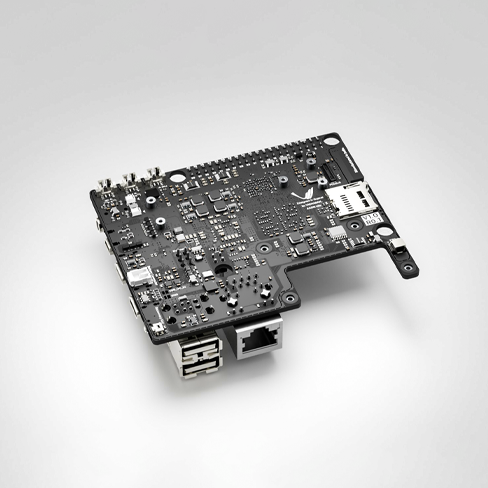

Vicharak Axon Lite
Axon Lite is a compact and versatile AI-enabled Single Board Computer designed for developers, researchers, students, makers and embedded-system professionals.
Powered by the Rockchip RK3576, Axon Lite combines an octa-core ARM processor with a dedicated 6 TOPS NPU for AI and machine-learning workloads. The processor features 4× ARM Cortex-A72 cores running up to 2.2 GHz and 4× ARM Cortex-A53 cores, providing a balance between performance and power efficiency.
AI & Edge Computing
The integrated 6 TOPS NPU provides dedicated hardware acceleration for AI and machine-learning inference, making Axon Lite suitable for:
- Computer vision
- Object detection
- Image processing
- AI inference
- Smart cameras
- Robotics
- Industrial automation
- Edge analytics
- IoT applications
The integrated ARM Mali-G52 MC3 GPU provides graphics acceleration and supports modern graphics APIs.
Memory & Storage
Axon Lite is available with 2GB, 4GB or 8GB LPDDR5 RAM and 32GB eMMC storage.
The board also provides flexible storage options through Micro SD, UFS 3.1, USB storage and PCIe-based NVMe storage.
Connectivity
Axon Lite provides a wide range of connectivity options including:
- Wi-Fi 6
- Bluetooth
- Gigabit Ethernet
- PoE support
- USB
- PCIe
- 40-pin GPIO
- UART
- I²C
- SPI
- PWM
Camera & Display
Axon Lite is designed for computer-vision and multimedia applications with multiple camera and display interfaces.
Camera interfaces include:
- 1× 4-lane MIPI CSI
- 4× 2-lane MIPI CSI
Display interfaces include:
- 1× Micro HDMI 2.1
- 1× USB Type-C DisplayPort
- 1× 4-lane MIPI DSI
Developer Friendly
The 40-pin GPIO header provides access to GPIO and common peripheral interfaces, allowing developers to connect sensors, actuators, displays, motor controllers and other embedded peripherals.
Axon Lite comes with Debian 13 (Trixie) pre-installed on the eMMC, allowing developers to get started quickly.
Compact Form Factor
With a compact board size of approximately 93 × 75 mm, Axon Lite is suitable for embedded products, robotics platforms, AI edge devices, development systems and custom enclosures.
Applications
- Edge AI
- Computer Vision
- Robotics
- Smart Cameras
- Industrial Automation
- IoT
- AI/ML Inference
- Embedded Linux
- Multimedia
- Smart Displays
- Hardware Prototyping
- Edge Computing
